product details

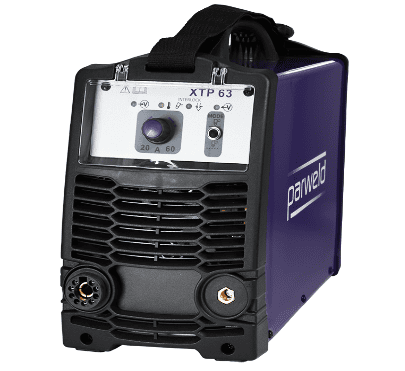

XTP Series PLASMA Cutting From Parweld.
Combined with a Plasma Cutting Torch, the Parweld XTP inverters are the ideal machine for any metalwork application. Plasma Cutters are used to cut any metal material, such as Stainless Steel, Mild Steel, Aluminium, Brass, Copper etc. They are not suitable for cutting plastics, wood, ceramic, glass and masonry materials. Parweld Plasma Cutters utilise a high velocity ionised gas to enable efficient and clean cuts through various metals, giving operators more control over their cuts to reach their specific cutting requirements. Parweld manufactures inverters with the ability to produce intricate cuts, whilst ensuring minimal heat affected zones and providing high cutting speeds, regardless of the material thickness. The Parweld aim is to produce Plasma Power Sources that are a key asset to any thin or thick metal cutting projects. These Plasma Cutting machines range from 40 – 100 AMPS, all capable of PLASMA Cutting On-Site and in Workshop Applications. With a cutting capacity ranging from 0mm – 50mm, all these inverters are fitted with a Mesh Cutting Option, whilst the XTP105i also features a CNC Automation Interface.

Product Specifications:

• Input Voltage: 400V
• Phase: Three Phase
• Fuse Rating: 20A
• Input Current: 7.6A
• Output Current: 10A – 60A
• Dimensions (L x W x H): 450mm x 170mm x 310mm
• Weight: 13kg
